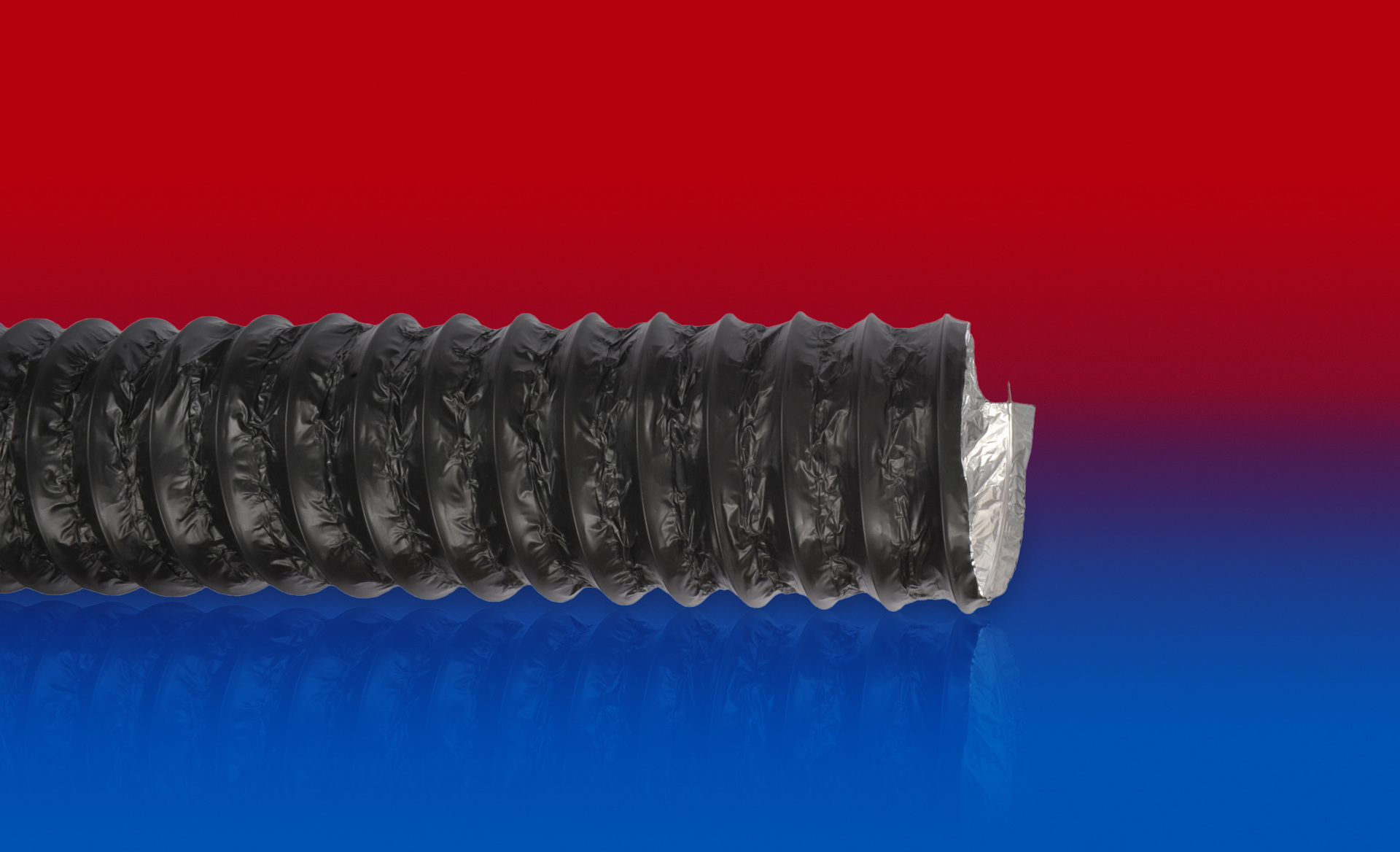

PROTAPE® ALU-PVC 369
Alu/PVC air conditioning hose, flame resistant
Product details
Applications
- flexible hose/ ducting for gases
- welding fume extraction
- Ventilation, air conditioning, heating system
Properties
- super-light weight
- highly flexible + compressible 10:1
- conforms to RoHS guideline
Temperature Range
- -10°C to 140°C
Delivery variants
- further diameters and lengths available on request
- black (standard)
Design
- PROTAPE® tape hose
- Pressure max. 250 mm H2O
- Air speed max. 25 m/s
- Bending radius 0,6 x ID
Article variants
I.D.
(in / mm)
(in / mm)
outer Ø
(mm)
(mm)
Bending
Radius
(mm)
Radius
(mm)
Weight
(kg/m)
(kg/m)
Production
Lengths
(m)
Lengths
(m)
Order No.
Further Article Details
I.D. (in / mm)
3 / 75-76
outer Ø (mm)
77.60
Bending Radius (mm)
46.00
Weight (kg/m)
0.00
Production Lengths (m)
10
Further Article Details
I.D. (in / mm)
- / 82
outer Ø (mm)
84.96
Bending Radius (mm)
49.00
Weight (kg/m)
0.00
Production Lengths (m)
10
Further Article Details
I.D. (in / mm)
4 / 100-102
outer Ø (mm)
105.00
Bending Radius (mm)
61.00
Weight (kg/m)
0.00
Production Lengths (m)
10
Further Article Details
I.D. (in / mm)
5 / 125-127
outer Ø (mm)
130.00
Bending Radius (mm)
76.00
Weight (kg/m)
0.00
Production Lengths (m)
10
Further Article Details
I.D. (in / mm)
6 / 150-152
outer Ø (mm)
155.36
Bending Radius (mm)
91.00
Weight (kg/m)
0.00
Production Lengths (m)
10
Further Article Details
I.D. (in / mm)
6,3 / 160
outer Ø (mm)
163.40
Bending Radius (mm)
96.00
Weight (kg/m)
0.00
Production Lengths (m)
10
Further Article Details
I.D. (in / mm)
7 / 178-180
outer Ø (mm)
183.40
Bending Radius (mm)
108.00
Weight (kg/m)
0.00
Production Lengths (m)
10
Further Article Details
I.D. (in / mm)
8 / 200-203
outer Ø (mm)
206.40
Bending Radius (mm)
122.00
Weight (kg/m)
0.00
Production Lengths (m)
10
Further Article Details
I.D. (in / mm)
10 / 254
outer Ø (mm)
257.40
Bending Radius (mm)
152.00
Weight (kg/m)
0.00
Production Lengths (m)
10
Further Article Details
I.D. (in / mm)
12 / 305
outer Ø (mm)
305.40
Bending Radius (mm)
183.00
Weight (kg/m)
0.00
Production Lengths (m)
10
Further Article Details
I.D. (in / mm)
- / 315
outer Ø (mm)
318.40
Bending Radius (mm)
189.00
Weight (kg/m)
0.00
Production Lengths (m)
10
Further Article Details
I.D. (in / mm)
14 / 356
outer Ø (mm)
359.40
Bending Radius (mm)
214.00
Weight (kg/m)
0.00
Production Lengths (m)
10
Further Article Details
I.D. (in / mm)
16 / 405-406
outer Ø (mm)
409.40
Bending Radius (mm)
244.00
Weight (kg/m)
0.00
Production Lengths (m)
10
Further Article Details
I.D. (in / mm)
18 / 457
outer Ø (mm)
461.16
Bending Radius (mm)
274.00
Weight (kg/m)
0.00
Production Lengths (m)
10
Further Article Details
I.D. (in / mm)
20 / 508
outer Ø (mm)
512.20
Bending Radius (mm)
305.00
Weight (kg/m)
0.00
Production Lengths (m)
10
Further Article Details
I.D. (in / mm)
24 / 610
outer Ø (mm)
614.20
Bending Radius (mm)
366.00
Weight (kg/m)
0.00
Production Lengths (m)
10
Overpressure and underpressure are recommended threshold operating values, products can be subjected to higher loads upon request. The bending radius is measured through the inside of the hose arch. The right to make technical modifications is reserved. All values determined at 20°C and are approx. data. Additional information at www.norres.com/en/technology/.
