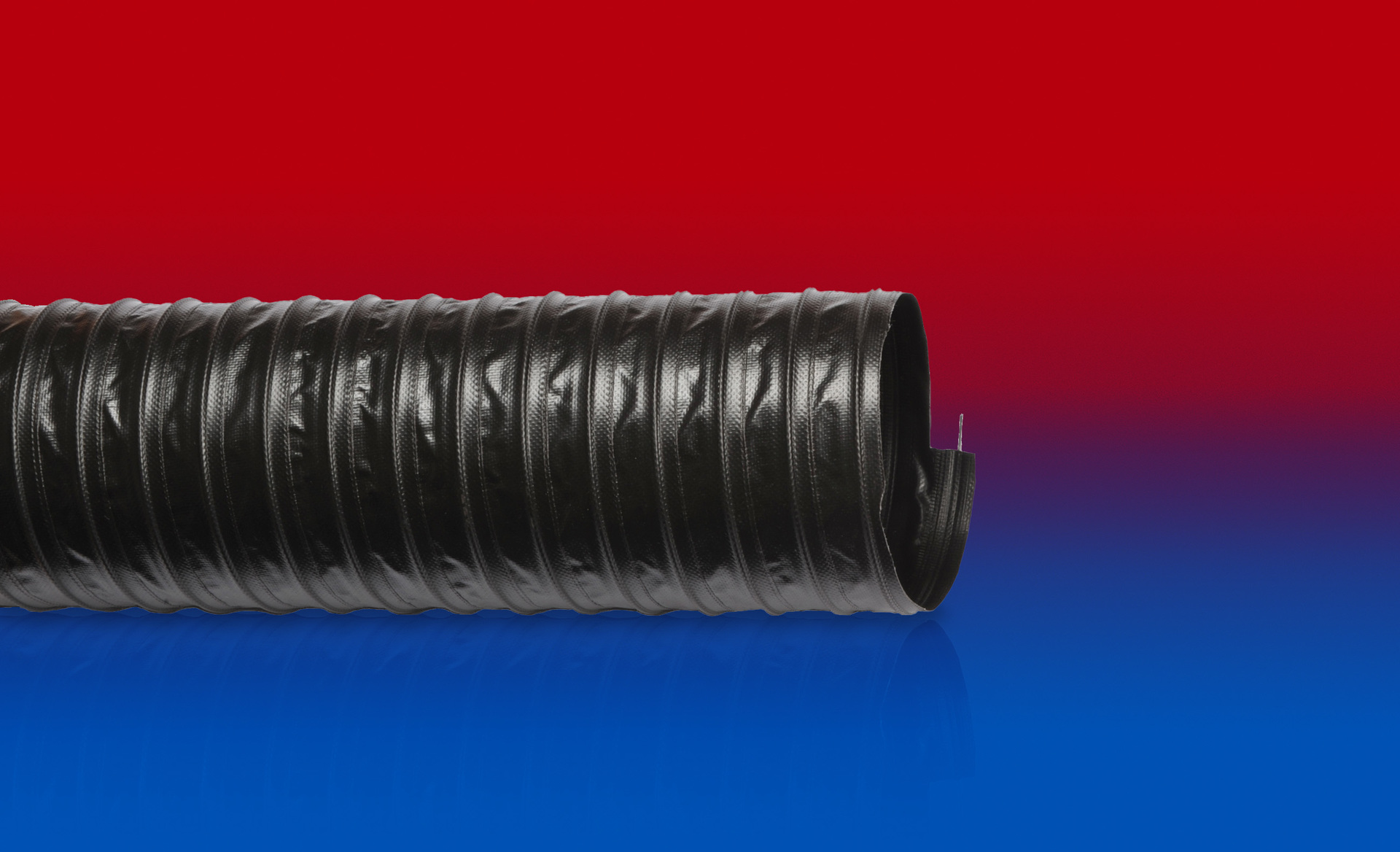

PROTAPE® PVC 371 AS (HD)

Permanently antistatic
PVC ventilation hose, heavy-duty, antistatic
Gas + Dust Abrasion-resistant Smooth interior High flexibility Flame retardant Antistatic and electrically conductive hoses
Request
Datasheet
Product details Article variants Accessories

Product details

Application

  • flexible hose/ ducting for gases
  • extraction unit, dust collection systems, filter system, oil mist extraction
  • galvanic extraction
  • chemical industry: chemical vapors, vapor return hose at loading arm, paint steam, spray mist extraction

Properties

  • fabric reinforced
  • heavy duty
  • flexible
  • good resistance to alkalis and acids
  • Flame-retardant wall according to NF P 92-507 M2
  • Permanently antistatic wall: in accordance with ISO 8031 electrical and surface resistance <10⁹ Ω
  • conforms to RoHS guideline

Temperature range

  • -4°F to 194°F

Delivery variants

  • black (standard)
  • further diameters and lengths available on request

Design

  • PROTAPE® tape hose
  • 1. spring steel wire integrated in wall
  • 2. fabric-reinforced tape; wall: PVC coated fabric
  • 3. wall thickness 0.02 in approx.

Article variants

I.D.


(in / mm)
outer Ø


(in)
Pressure


(psi)
Vacuum


(inHG)
Bending
radius

(in)
Weight


(lb/ft)
Production
lengths

(ft)
Order No.
2 / 50-51
2.098
5.947
5.168
1.606
0.262
32,5 50 65
371-0050-3402
Further Article Details
I.D. (in / mm)
2 / 50-51
outer Ø (in)
2.098
Pressure (psi)
5.947
Vacuum (inHG)
5.168
Bending radius (in)
1.606
Weight (lb/ft)
0.262
Production lengths (ft)
32,5 50 65
2,36 / 60
2.492
4.931
3.839
1.890
0.296
32,5 50 65
371-0060-3402
Further Article Details
I.D. (in / mm)
2,36 / 60
outer Ø (in)
2.492
Pressure (psi)
4.931
Vacuum (inHG)
3.839
Bending radius (in)
1.890
Weight (lb/ft)
0.296
Production lengths (ft)
32,5 50 65
- / 70
2.886
4.279
3.248
2.205
0.269
32,5 50 65
371-0070-3402
Further Article Details
I.D. (in / mm)
- / 70
outer Ø (in)
2.886
Pressure (psi)
4.279
Vacuum (inHG)
3.248
Bending radius (in)
2.205
Weight (lb/ft)
0.269
Production lengths (ft)
32,5 50 65
3 / 75-76
3.083
3.989
2.805
2.394
0.370
32,5 50 65
371-0075-3402
Further Article Details
I.D. (in / mm)
3 / 75-76
outer Ø (in)
3.083
Pressure (psi)
3.989
Vacuum (inHG)
2.805
Bending radius (in)
2.394
Weight (lb/ft)
0.370
Production lengths (ft)
32,5 50 65
- / 80
3.280
3.699
2.805
2.520
0.397
32,5 50 65
371-0080-3402
Further Article Details
I.D. (in / mm)
- / 80
outer Ø (in)
3.280
Pressure (psi)
3.699
Vacuum (inHG)
2.805
Bending radius (in)
2.520
Weight (lb/ft)
0.397
Production lengths (ft)
32,5 50 65
3,5 / 89-90
3.673
3.336
2.510
2.835
0.437
32,5 50 65
371-0090-3402
Further Article Details
I.D. (in / mm)
3,5 / 89-90
outer Ø (in)
3.673
Pressure (psi)
3.336
Vacuum (inHG)
2.510
Bending radius (in)
2.835
Weight (lb/ft)
0.437
Production lengths (ft)
32,5 50 65
4 / 100-102
4.083
2.973
1.772
3.213
0.444
32,5 50 65
371-0100-3402
Further Article Details
I.D. (in / mm)
4 / 100-102
outer Ø (in)
4.083
Pressure (psi)
2.973
Vacuum (inHG)
1.772
Bending radius (in)
3.213
Weight (lb/ft)
0.444
Production lengths (ft)
32,5 50 65
- / 110
4.476
2.683
1.624
3.465
0.477
32,5 50 65
371-0110-3402
Further Article Details
I.D. (in / mm)
- / 110
outer Ø (in)
4.476
Pressure (psi)
2.683
Vacuum (inHG)
1.624
Bending radius (in)
3.465
Weight (lb/ft)
0.477
Production lengths (ft)
32,5 50 65
4,72 / 120
4.870
2.466
1.477
3.780
0.524
32,5 50 65
371-0120-3402
Further Article Details
I.D. (in / mm)
4,72 / 120
outer Ø (in)
4.870
Pressure (psi)
2.466
Vacuum (inHG)
1.477
Bending radius (in)
3.780
Weight (lb/ft)
0.524
Production lengths (ft)
32,5 50 65
5 / 125-127
5.067
2.393
1.181
4.000
0.551
32,5 50 65
371-0125-3402
Further Article Details
I.D. (in / mm)
5 / 125-127
outer Ø (in)
5.067
Pressure (psi)
2.393
Vacuum (inHG)
1.181
Bending radius (in)
4.000
Weight (lb/ft)
0.551
Production lengths (ft)
32,5 50 65
5,5 / 140
5.657
2.103
1.181
4.409
0.618
32,5 50 65
371-0140-3402
Further Article Details
I.D. (in / mm)
5,5 / 140
outer Ø (in)
5.657
Pressure (psi)
2.103
Vacuum (inHG)
1.181
Bending radius (in)
4.409
Weight (lb/ft)
0.618
Production lengths (ft)
32,5 50 65
6 / 150-152
6.051
1.958
1.181
4.787
0.679
32,5 50 65
371-0150-3402
Further Article Details
I.D. (in / mm)
6 / 150-152
outer Ø (in)
6.051
Pressure (psi)
1.958
Vacuum (inHG)
1.181
Bending radius (in)
4.787
Weight (lb/ft)
0.679
Production lengths (ft)
32,5 50 65
6,3 / 160
6.445
1.886
0.738
5.039
0.726
32,5 50 65
371-0160-3402
Further Article Details
I.D. (in / mm)
6,3 / 160
outer Ø (in)
6.445
Pressure (psi)
1.886
Vacuum (inHG)
0.738
Bending radius (in)
5.039
Weight (lb/ft)
0.726
Production lengths (ft)
32,5 50 65
7 / 178-180
7.232
1.668
0.738
5.669
0.813
32,5 50 65
371-0180-3402
Further Article Details
I.D. (in / mm)
7 / 178-180
outer Ø (in)
7.232
Pressure (psi)
1.668
Vacuum (inHG)
0.738
Bending radius (in)
5.669
Weight (lb/ft)
0.813
Production lengths (ft)
32,5 50 65
8 / 200-203
8.035
1.523
0.738
6.394
1.176
32,5 50 65
371-0200-3402
Further Article Details
I.D. (in / mm)
8 / 200-203
outer Ø (in)
8.035
Pressure (psi)
1.523
Vacuum (inHG)
0.738
Bending radius (in)
6.394
Weight (lb/ft)
1.176
Production lengths (ft)
32,5 50 65
- / 250
10.004
1.233
0.591
7.874
1.358
32,5 50 65
371-0250-3402
Further Article Details
I.D. (in / mm)
- / 250
outer Ø (in)
10.004
Pressure (psi)
1.233
Vacuum (inHG)
0.591
Bending radius (in)
7.874
Weight (lb/ft)
1.358
Production lengths (ft)
32,5 50 65
- / 300
11.972
1.015
0.295
9.449
1.512
32,5 50 65
371-0300-3402
Further Article Details
I.D. (in / mm)
- / 300
outer Ø (in)
11.972
Pressure (psi)
1.015
Vacuum (inHG)
0.295
Bending radius (in)
9.449
Weight (lb/ft)
1.512
Production lengths (ft)
32,5 50 65
12 / 305
12.185
1.015
0.295
9.606
1.512
32,5 40
371-0305-3402
Further Article Details
I.D. (in / mm)
12 / 305
outer Ø (in)
12.185
Pressure (psi)
1.015
Vacuum (inHG)
0.295
Bending radius (in)
9.606
Weight (lb/ft)
1.512
Production lengths (ft)
32,5 40
- / 350
13.957
0.000
0.295
11.024
1.734
32,5 40
371-0350-3402
Further Article Details
I.D. (in / mm)
- / 350
outer Ø (in)
13.957
Pressure (psi)
0.000
Vacuum (inHG)
0.295
Bending radius (in)
11.024
Weight (lb/ft)
1.734
Production lengths (ft)
32,5 40
14 / 356
14.209
0.000
0.295
11.213
1.734
32,5 40
371-0356-3402
Further Article Details
I.D. (in / mm)
14 / 356
outer Ø (in)
14.209
Pressure (psi)
0.000
Vacuum (inHG)
0.295
Bending radius (in)
11.213
Weight (lb/ft)
1.734
Production lengths (ft)
32,5 40
- / 400
15.941
0.000
0.148
12.598
1.828
32,5 40
371-0400-3402
Further Article Details
I.D. (in / mm)
- / 400
outer Ø (in)
15.941
Pressure (psi)
0.000
Vacuum (inHG)
0.148
Bending radius (in)
12.598
Weight (lb/ft)
1.828
Production lengths (ft)
32,5 40
16 / 405-406
16.177
0.000
0.148
12.787
1.828
32,5 40
371-0406-3402
Further Article Details
I.D. (in / mm)
16 / 405-406
outer Ø (in)
16.177
Pressure (psi)
0.000
Vacuum (inHG)
0.148
Bending radius (in)
12.787
Weight (lb/ft)
1.828
Production lengths (ft)
32,5 40
- / 500
19.878
0.000
0.148
15.748
2.097
32,5 40
371-0500-3402
Further Article Details
I.D. (in / mm)
- / 500
outer Ø (in)
19.878
Pressure (psi)
0.000
Vacuum (inHG)
0.148
Bending radius (in)
15.748
Weight (lb/ft)
2.097
Production lengths (ft)
32,5 40
20 / 508
20.193
0.000
0.148
16.000
2.097
32,5 40
371-0508-3402
Further Article Details
I.D. (in / mm)
20 / 508
outer Ø (in)
20.193
Pressure (psi)
0.000
Vacuum (inHG)
0.148
Bending radius (in)
16.000
Weight (lb/ft)
2.097
Production lengths (ft)
32,5 40
- / 600
23.815
0.000
0.148
18.898
3.327
32.5
371-0600-3402
Further Article Details
I.D. (in / mm)
- / 600
outer Ø (in)
23.815
Pressure (psi)
0.000
Vacuum (inHG)
0.148
Bending radius (in)
18.898
Weight (lb/ft)
3.327
Production lengths (ft)
32.5
Positive and negative pressure ratings are the recommended maximum operating values. Products can be manufactured to meet higher operating values upon request. The bend radius is calculated from the center of the hose in an arched position. Additional information at www.norres.com/us/technology/. NORRES reserves the right to modify technical data at any time. Technical data based on tests at 68°F and are approx. values. Proper use and maintenance of NORRES hoses is the sole responsibility of purchaser and ultimate user of the product. The individual conditions, applications and the number of variables make firm recommendations technically impossible. This information is intended as a general guide only.
