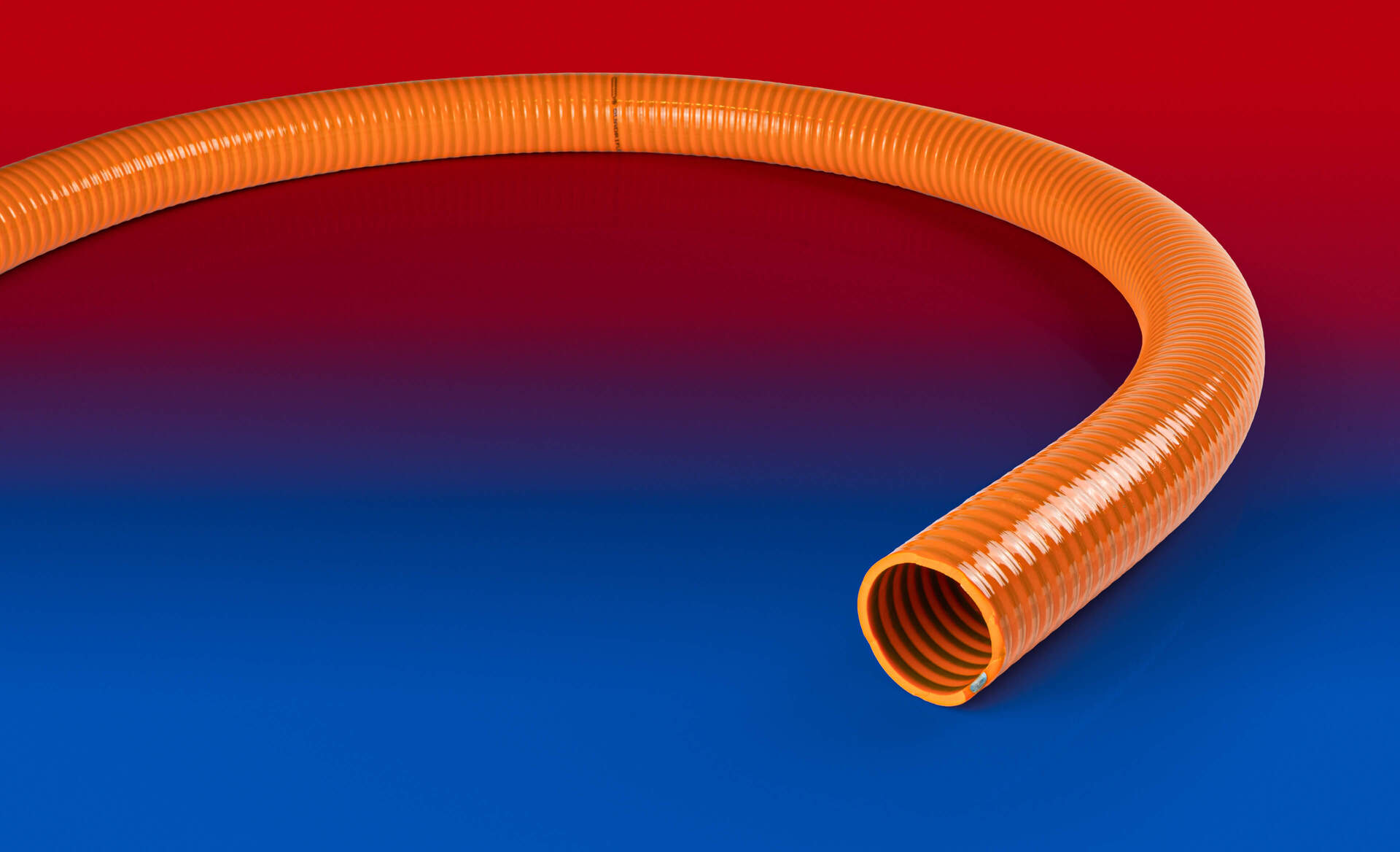

NORPLAST® 4460 QUADRIFLEX

New
Thermoplastic suction hose
Gas + Dust + Liquid + Solids Smooth interior
Request
Datasheet
Product details Article variants Documents

Product details

Application

  • for industrial water, wastewater and dung
  • Has been used to full satisfaction in the public sector and in agriculture for years
  • Due to its smooth outer wall, very suitable for use in water treatment plants, water reservoirs, slurry pits, etc.

Properties

  • Has an oval spiral instead of a round one
  • according to the norm EN ISO 1307:2008
  • Vacuum up to 0.9 bar

Temperature range

  • -15°F to 140°F

Design

  • soft PVC inner layer
  • PVC outer layer
  • smooth construction cover
  • rigid PVC spiral
  • smooth inner tube

Delivery variants

  • orange inner tube, orange exterior wall, anthracite spiral (standard)

Article variants

I.D.


(in / mm)
outer Ø


(in)
Wall
thickness

(in)
Bending
radius

(in)
Weight


(lb/ft)
Dimensions
in Stock

(ft)
Order No.
2 / 50-51
2.362
0.177
8.031
0.638
100
4460-050-000
Further Article Details
I.D. (in / mm)
2 / 50-51
outer Ø (in)
2.362
Wall thickness (in)
0.177
Bending radius (in)
8.031
Weight (lb/ft)
0.638
Dimensions in Stock (ft)
100
3 / 75-76
3.386
0.197
11.969
1.075
100
4460-075-000
Further Article Details
I.D. (in / mm)
3 / 75-76
outer Ø (in)
3.386
Wall thickness (in)
0.197
Bending radius (in)
11.969
Weight (lb/ft)
1.075
Dimensions in Stock (ft)
100
- / 80
3.543
0.197
12.598
1.142
100
4460-080-000
Further Article Details
I.D. (in / mm)
- / 80
outer Ø (in)
3.543
Wall thickness (in)
0.197
Bending radius (in)
12.598
Weight (lb/ft)
1.142
Dimensions in Stock (ft)
100
3,5 / 89-90
3.937
0.197
14.173
1.310
100
4460-090-000
Further Article Details
I.D. (in / mm)
3,5 / 89-90
outer Ø (in)
3.937
Wall thickness (in)
0.197
Bending radius (in)
14.173
Weight (lb/ft)
1.310
Dimensions in Stock (ft)
100
4 / 100-102
4.488
0.236
16.063
1.626
100
4460-100-000
Further Article Details
I.D. (in / mm)
4 / 100-102
outer Ø (in)
4.488
Wall thickness (in)
0.236
Bending radius (in)
16.063
Weight (lb/ft)
1.626
Dimensions in Stock (ft)
100
- / 110
4.764
0.217
17.323
1.747
60
4460-110-000
Further Article Details
I.D. (in / mm)
- / 110
outer Ø (in)
4.764
Wall thickness (in)
0.217
Bending radius (in)
17.323
Weight (lb/ft)
1.747
Dimensions in Stock (ft)
60
5 / 125-127
5.512
0.256
20.000
2.218
50
4460-125-000
Further Article Details
I.D. (in / mm)
5 / 125-127
outer Ø (in)
5.512
Wall thickness (in)
0.256
Bending radius (in)
20.000
Weight (lb/ft)
2.218
Dimensions in Stock (ft)
50
6 / 150-152
6.575
0.295
23.937
2.957
10 15 50
4460-150-000
Further Article Details
I.D. (in / mm)
6 / 150-152
outer Ø (in)
6.575
Wall thickness (in)
0.295
Bending radius (in)
23.937
Weight (lb/ft)
2.957
Dimensions in Stock (ft)
10 15 50
Positive and negative pressure ratings are the recommended maximum operating values. Products can be manufactured to meet higher operating values upon request. The bend radius is calculated from the center of the hose in an arched position. Additional information at www.norres.com/us/technology/. NORRES reserves the right to modify technical data at any time. Technical data based on tests at 68°F and are approx. values. Proper use and maintenance of NORRES hoses is the sole responsibility of purchaser and ultimate user of the product. The individual conditions, applications and the number of variables make firm recommendations technically impossible. This information is intended as a general guide only.
