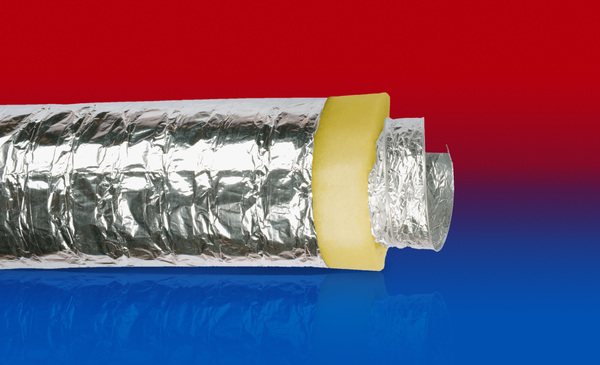

ISODUC ALU-PES 368 SE
Aluminium/fiber glass air conditioning hose, insulated, flame resistant (M0)
Product details
Application
- flexible hose/ ducting for gases
- Air conditioning in marine applications
- Thermal and acoustic insulation
Properties
- highly flexible + compressible 6:1
- insulating
- Flame-retardant wall according to C.S.T.B. class M0-M1 (France)
- conforms to RoHS guideline
Design
- special thermal insulation layer
- Fibreglass insulation: thickness 25 mm and density 16 Kg/m³
- Pressure max. 300 mm H2O
- Air speed max. 30 m/s
Temperature range
- -22°F to 482°F
Delivery variants
- further diameters and lengths available on request
- silver
Article variants
I.D.
(in / mm)
(in / mm)
outer Ø
(in)
(in)
Bending
radius
(in)
radius
(in)
Weight
(lb/ft)
(lb/ft)
Production
lengths
(ft)
lengths
(ft)
Order No.
Further Article Details
I.D. (in / mm)
3 / 75-76
outer Ø (in)
3.055
Bending radius (in)
2.992
Weight (lb/ft)
0.000
Production lengths (ft)
25
Further Article Details
I.D. (in / mm)
- / 82
outer Ø (in)
3.345
Bending radius (in)
3.228
Weight (lb/ft)
0.000
Production lengths (ft)
25
Further Article Details
I.D. (in / mm)
4 / 100-102
outer Ø (in)
4.134
Bending radius (in)
4.016
Weight (lb/ft)
0.000
Production lengths (ft)
25
Further Article Details
I.D. (in / mm)
5 / 125-127
outer Ø (in)
5.118
Bending radius (in)
5.000
Weight (lb/ft)
0.000
Production lengths (ft)
25
Further Article Details
I.D. (in / mm)
6 / 150-152
outer Ø (in)
6.117
Bending radius (in)
5.984
Weight (lb/ft)
0.000
Production lengths (ft)
25
Further Article Details
I.D. (in / mm)
6,3 / 160
outer Ø (in)
6.433
Bending radius (in)
6.299
Weight (lb/ft)
0.000
Production lengths (ft)
25
Further Article Details
I.D. (in / mm)
7 / 178-180
outer Ø (in)
7.220
Bending radius (in)
7.087
Weight (lb/ft)
0.000
Production lengths (ft)
25
Further Article Details
I.D. (in / mm)
8 / 200-203
outer Ø (in)
8.126
Bending radius (in)
7.992
Weight (lb/ft)
0.000
Production lengths (ft)
25
Further Article Details
I.D. (in / mm)
10 / 254
outer Ø (in)
10.134
Bending radius (in)
10.000
Weight (lb/ft)
0.000
Production lengths (ft)
25
Further Article Details
I.D. (in / mm)
12 / 305
outer Ø (in)
12.024
Bending radius (in)
12.008
Weight (lb/ft)
0.000
Production lengths (ft)
25
Further Article Details
I.D. (in / mm)
- / 315
outer Ø (in)
12.535
Bending radius (in)
12.402
Weight (lb/ft)
0.000
Production lengths (ft)
25
Further Article Details
I.D. (in / mm)
14 / 356
outer Ø (in)
14.150
Bending radius (in)
14.016
Weight (lb/ft)
0.000
Production lengths (ft)
25
Further Article Details
I.D. (in / mm)
16 / 405-406
outer Ø (in)
16.118
Bending radius (in)
15.984
Weight (lb/ft)
0.000
Production lengths (ft)
25
Further Article Details
I.D. (in / mm)
18 / 457
outer Ø (in)
18.156
Bending radius (in)
17.992
Weight (lb/ft)
0.000
Production lengths (ft)
25
Further Article Details
I.D. (in / mm)
20 / 508
outer Ø (in)
20.165
Bending radius (in)
20.000
Weight (lb/ft)
0.000
Production lengths (ft)
25
Further Article Details
I.D. (in / mm)
24 / 610
outer Ø (in)
24.181
Bending radius (in)
24.016
Weight (lb/ft)
0.000
Production lengths (ft)
25
Positive and negative pressure ratings are the recommended maximum operating values. Products can be manufactured to meet higher operating values upon request. The bend radius is calculated from the center of the hose in an arched position. Additional information at www.norres.com/us/technology/. NORRES reserves the right to modify technical data at any time. Technical data based on tests at 68°F and are approx. values. Proper use and maintenance of NORRES hoses is the sole responsibility of purchaser and ultimate user of the product. The individual conditions, applications and the number of variables make firm recommendations technically impossible. This information is intended as a general guide only.
