CP PE 457

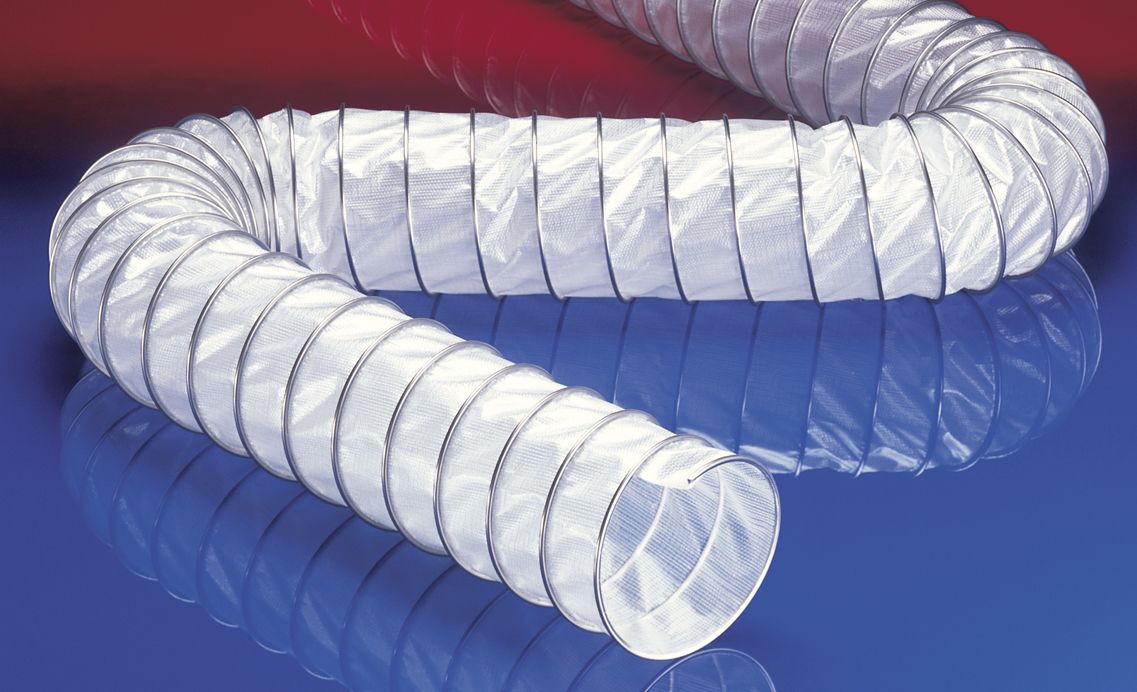

Polyethylene clamp profile hose (clip hose)
Product details
Application
- flexible hose/ ducting for gases and for dust, powder, fibers
- chemical industry: chemical vapors, vapor return hose at loading arm, paint steam, spray mist extraction
- asbestos removal
- construction drying
Properties
- abrasion protection via external clamp profile
- secure clamping of the wall within the clamp profile
- highly flexible + compressible 4:1
- odorless and tasteless
- good resistance to alkalis and acids
- extremely good resistance to chemicals
- conforms to RoHS guideline
- REACH according to --> Technology / Technical Information / REACH
Temperature range
- -30°F to 175°F
Design
- CP construction
- 1. Clamp profile supporting spiral: galvanised steel
- 2. wall: polyethylene fabric (LDPE + HDPE)
Delivery variants
- further diameters and lengths available on request
- stainless steel (INOX) clamp profile
- double-layer
Article variants
I.D.
(in / mm)
(in / mm)
outer Ø
(in)
(in)
Pressure
(psi)
(psi)
Vacuum
(inHG)
(inHG)
Bending
radius
(in)
radius
(in)
Weight
(lb/ft)
(lb/ft)
Dimensions
in Stock
(ft)
in Stock
(ft)
Order No.
Further Article Details
I.D. (in / mm)
2 / 50-51
outer Ø (in)
2.441
Pressure (psi)
7.107
Vacuum (inHG)
7.973
Bending radius (in)
0.709
Weight (lb/ft)
0.296
Dimensions in Stock (ft)
25
Further Article Details
I.D. (in / mm)
- / 55
outer Ø (in)
2.638
Pressure (psi)
6.672
Vacuum (inHG)
7.383
Bending radius (in)
0.787
Weight (lb/ft)
0.316
Dimensions in Stock (ft)
25
Further Article Details
I.D. (in / mm)
2,36 / 60
outer Ø (in)
2.835
Pressure (psi)
6.382
Vacuum (inHG)
6.497
Bending radius (in)
0.787
Weight (lb/ft)
0.343
Dimensions in Stock (ft)
-
Further Article Details
I.D. (in / mm)
2,5 / 63-65
outer Ø (in)
3.031
Pressure (psi)
6.092
Vacuum (inHG)
5.906
Bending radius (in)
0.866
Weight (lb/ft)
0.363
Dimensions in Stock (ft)
25
Further Article Details
I.D. (in / mm)
- / 70
outer Ø (in)
3.228
Pressure (psi)
5.802
Vacuum (inHG)
5.315
Bending radius (in)
0.866
Weight (lb/ft)
0.397
Dimensions in Stock (ft)
25
Further Article Details
I.D. (in / mm)
3 / 75-76
outer Ø (in)
3.425
Pressure (psi)
5.512
Vacuum (inHG)
4.725
Bending radius (in)
0.945
Weight (lb/ft)
0.423
Dimensions in Stock (ft)
25
Further Article Details
I.D. (in / mm)
- / 80
outer Ø (in)
3.622
Pressure (psi)
5.294
Vacuum (inHG)
4.134
Bending radius (in)
0.945
Weight (lb/ft)
0.450
Dimensions in Stock (ft)
-
Further Article Details
I.D. (in / mm)
3,5 / 89-90
outer Ø (in)
4.016
Pressure (psi)
4.931
Vacuum (inHG)
2.953
Bending radius (in)
1.024
Weight (lb/ft)
0.504
Dimensions in Stock (ft)
25
Further Article Details
I.D. (in / mm)
4 / 100-102
outer Ø (in)
4.409
Pressure (psi)
3.263
Vacuum (inHG)
2.510
Bending radius (in)
1.102
Weight (lb/ft)
0.363
Dimensions in Stock (ft)
25
Further Article Details
I.D. (in / mm)
- / 110
outer Ø (in)
4.803
Pressure (psi)
3.046
Vacuum (inHG)
2.215
Bending radius (in)
1.181
Weight (lb/ft)
0.390
Dimensions in Stock (ft)
-
Further Article Details
I.D. (in / mm)
4,72 / 120
outer Ø (in)
5.197
Pressure (psi)
2.901
Vacuum (inHG)
1.919
Bending radius (in)
1.260
Weight (lb/ft)
0.430
Dimensions in Stock (ft)
-
Further Article Details
I.D. (in / mm)
5 / 125-127
outer Ø (in)
5.394
Pressure (psi)
2.828
Vacuum (inHG)
1.772
Bending radius (in)
1.339
Weight (lb/ft)
0.444
Dimensions in Stock (ft)
12.5 25
Further Article Details
I.D. (in / mm)
- / 130
outer Ø (in)
5.591
Pressure (psi)
2.611
Vacuum (inHG)
1.624
Bending radius (in)
1.339
Weight (lb/ft)
0.464
Dimensions in Stock (ft)
12.5 25
Further Article Details
I.D. (in / mm)
5,5 / 140
outer Ø (in)
5.984
Pressure (psi)
2.611
Vacuum (inHG)
1.181
Bending radius (in)
1.417
Weight (lb/ft)
0.497
Dimensions in Stock (ft)
12.5 25
Further Article Details
I.D. (in / mm)
6 / 150-152
outer Ø (in)
6.378
Pressure (psi)
1.740
Vacuum (inHG)
1.034
Bending radius (in)
1.496
Weight (lb/ft)
0.531
Dimensions in Stock (ft)
12.5 25
Further Article Details
I.D. (in / mm)
6,3 / 160
outer Ø (in)
6.772
Pressure (psi)
1.668
Vacuum (inHG)
0.886
Bending radius (in)
1.575
Weight (lb/ft)
0.565
Dimensions in Stock (ft)
-
Further Article Details
I.D. (in / mm)
6,5 / 165
outer Ø (in)
6.969
Pressure (psi)
1.595
Vacuum (inHG)
0.886
Bending radius (in)
1.614
Weight (lb/ft)
0.578
Dimensions in Stock (ft)
12.5 25
Further Article Details
I.D. (in / mm)
- / 170
outer Ø (in)
7.165
Pressure (psi)
1.595
Vacuum (inHG)
0.886
Bending radius (in)
1.654
Weight (lb/ft)
0.598
Dimensions in Stock (ft)
-
Further Article Details
I.D. (in / mm)
- / 175
outer Ø (in)
7.362
Pressure (psi)
1.595
Vacuum (inHG)
0.886
Bending radius (in)
1.732
Weight (lb/ft)
0.612
Dimensions in Stock (ft)
12.5 25
Further Article Details
I.D. (in / mm)
7 / 178-180
outer Ø (in)
7.559
Pressure (psi)
1.595
Vacuum (inHG)
0.738
Bending radius (in)
1.732
Weight (lb/ft)
0.632
Dimensions in Stock (ft)
12.5 25
Further Article Details
I.D. (in / mm)
8 / 200-203
outer Ø (in)
8.346
Pressure (psi)
1.450
Vacuum (inHG)
0.591
Bending radius (in)
1.890
Weight (lb/ft)
0.544
Dimensions in Stock (ft)
12.5 25
Further Article Details
I.D. (in / mm)
- / 225
outer Ø (in)
9.331
Pressure (psi)
1.305
Vacuum (inHG)
0.591
Bending radius (in)
2.126
Weight (lb/ft)
0.598
Dimensions in Stock (ft)
-
Further Article Details
I.D. (in / mm)
9 / 228-229
outer Ø (in)
9.449
Pressure (psi)
1.160
Vacuum (inHG)
0.591
Bending radius (in)
2.126
Weight (lb/ft)
0.612
Dimensions in Stock (ft)
12.5 25
Further Article Details
I.D. (in / mm)
- / 250
outer Ø (in)
10.315
Pressure (psi)
1.015
Vacuum (inHG)
0.443
Bending radius (in)
2.283
Weight (lb/ft)
0.665
Dimensions in Stock (ft)
-
Further Article Details
I.D. (in / mm)
10 / 254
outer Ø (in)
10.472
Pressure (psi)
0.943
Vacuum (inHG)
0.443
Bending radius (in)
2.323
Weight (lb/ft)
0.679
Dimensions in Stock (ft)
12.5 25
Further Article Details
I.D. (in / mm)
- / 275
outer Ø (in)
11.299
Pressure (psi)
0.870
Vacuum (inHG)
0.443
Bending radius (in)
2.520
Weight (lb/ft)
0.733
Dimensions in Stock (ft)
12.5 25
Further Article Details
I.D. (in / mm)
11 / 280
outer Ø (in)
11.496
Pressure (psi)
0.870
Vacuum (inHG)
0.443
Bending radius (in)
2.559
Weight (lb/ft)
0.746
Dimensions in Stock (ft)
12.5 25
Further Article Details
I.D. (in / mm)
- / 300
outer Ø (in)
12.283
Pressure (psi)
0.870
Vacuum (inHG)
0.295
Bending radius (in)
2.677
Weight (lb/ft)
0.793
Dimensions in Stock (ft)
-
Further Article Details
I.D. (in / mm)
12 / 305
outer Ø (in)
12.480
Pressure (psi)
0.798
Vacuum (inHG)
0.295
Bending radius (in)
2.717
Weight (lb/ft)
0.806
Dimensions in Stock (ft)
12.5 25
Further Article Details
I.D. (in / mm)
- / 315
outer Ø (in)
12.874
Pressure (psi)
0.725
Vacuum (inHG)
0.295
Bending radius (in)
2.795
Weight (lb/ft)
0.833
Dimensions in Stock (ft)
12.5 25
Further Article Details
I.D. (in / mm)
- / 325
outer Ø (in)
13.268
Pressure (psi)
0.653
Vacuum (inHG)
0.295
Bending radius (in)
2.913
Weight (lb/ft)
0.860
Dimensions in Stock (ft)
12.5 25
Further Article Details
I.D. (in / mm)
- / 350
outer Ø (in)
14.252
Pressure (psi)
0.653
Vacuum (inHG)
0.295
Bending radius (in)
3.071
Weight (lb/ft)
0.927
Dimensions in Stock (ft)
-
Further Article Details
I.D. (in / mm)
- / 400
outer Ø (in)
16.220
Pressure (psi)
0.580
Vacuum (inHG)
0.148
Bending radius (in)
3.465
Weight (lb/ft)
1.055
Dimensions in Stock (ft)
-
Further Article Details
I.D. (in / mm)
16 / 405-406
outer Ø (in)
16.457
Pressure (psi)
0.508
Vacuum (inHG)
0.148
Bending radius (in)
3.504
Weight (lb/ft)
1.069
Dimensions in Stock (ft)
12.5 25
Further Article Details
I.D. (in / mm)
- / 450
outer Ø (in)
18.189
Pressure (psi)
0.508
Vacuum (inHG)
0.148
Bending radius (in)
3.858
Weight (lb/ft)
1.183
Dimensions in Stock (ft)
-
Further Article Details
I.D. (in / mm)
- / 500
outer Ø (in)
20.157
Pressure (psi)
0.363
Vacuum (inHG)
0.148
Bending radius (in)
4.252
Weight (lb/ft)
1.317
Dimensions in Stock (ft)
-
Further Article Details
I.D. (in / mm)
20 / 508
outer Ø (in)
20.472
Pressure (psi)
0.363
Vacuum (inHG)
0.148
Bending radius (in)
4.331
Weight (lb/ft)
1.337
Dimensions in Stock (ft)
12.5 25
Further Article Details
I.D. (in / mm)
- / 600
outer Ø (in)
24.094
Pressure (psi)
0.363
Vacuum (inHG)
0.148
Bending radius (in)
5.039
Weight (lb/ft)
1.579
Dimensions in Stock (ft)
-
Further Article Details
I.D. (in / mm)
- / 700
outer Ø (in)
28.031
Pressure (psi)
0.290
Vacuum (inHG)
0.059
Bending radius (in)
5.827
Weight (lb/ft)
1.835
Dimensions in Stock (ft)
-
Further Article Details
I.D. (in / mm)
- / 750
outer Ø (in)
30.000
Pressure (psi)
0.290
Vacuum (inHG)
0.030
Bending radius (in)
6.220
Weight (lb/ft)
1.969
Dimensions in Stock (ft)
12.5 25
Further Article Details
I.D. (in / mm)
- / 800
outer Ø (in)
31.969
Pressure (psi)
0.218
Vacuum (inHG)
0.030
Bending radius (in)
6.614
Weight (lb/ft)
2.097
Dimensions in Stock (ft)
-
Further Article Details
I.D. (in / mm)
- / 1000
outer Ø (in)
39.843
Pressure (psi)
0.218
Vacuum (inHG)
0.030
Bending radius (in)
8.189
Weight (lb/ft)
2.614
Dimensions in Stock (ft)
-
Positive and negative pressure ratings are the recommended maximum operating values. Products can be manufactured to meet higher operating values upon request. The bend radius is calculated from the center of the hose in an arched position. Additional information at www.norres.com/us/technology/. NORRES reserves the right to modify technical data at any time. Technical data based on tests at 68°F and are approx. values. Proper use and maintenance of NORRES hoses is the sole responsibility of purchaser and ultimate user of the product. The individual conditions, applications and the number of variables make firm recommendations technically impossible. This information is intended as a general guide only.
