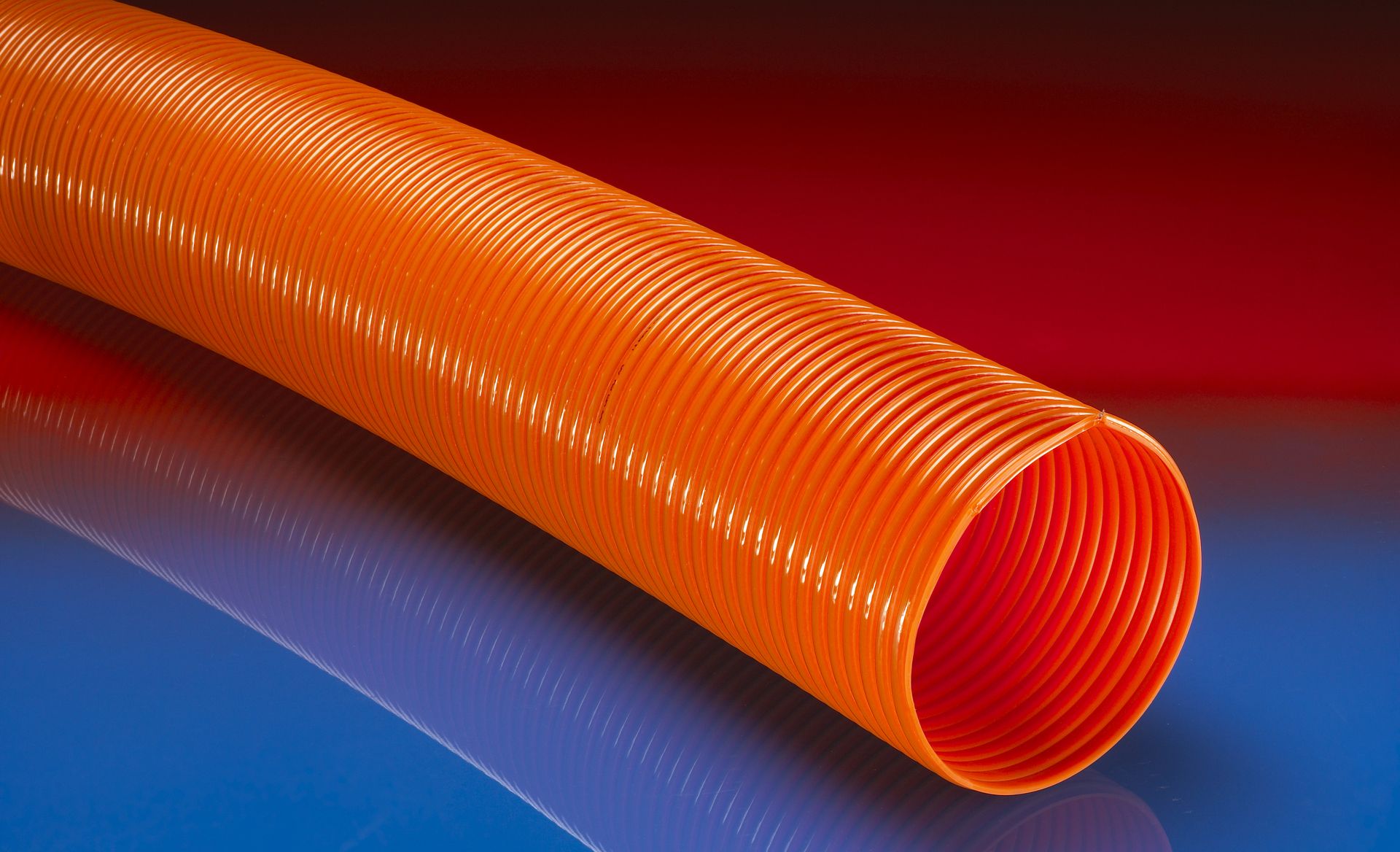

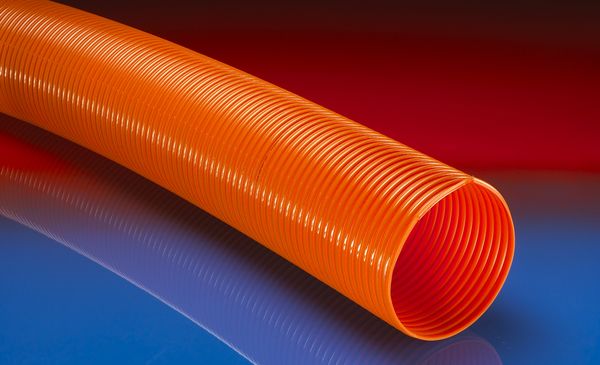

AIRDUC® PUR 355 VAC-TRUCK ORANGE
Vacuum truck hose, heavy duty and reinforced, very flexible
Product details
Application
- suction excavator
- municipal vehicle: sweeper, sweeping machine
Properties
- heavy duty and reinforced
- highly abrasion resistant
- microbe resistant
- good resistance to oil, gasoline, and chemicals
- very good low temperature flexibility
- conforms to RoHS guideline
- REACH according to --> Technology / Technical Information / REACH
Temperature range
- -40°F to 195°F
- short time to 255°F

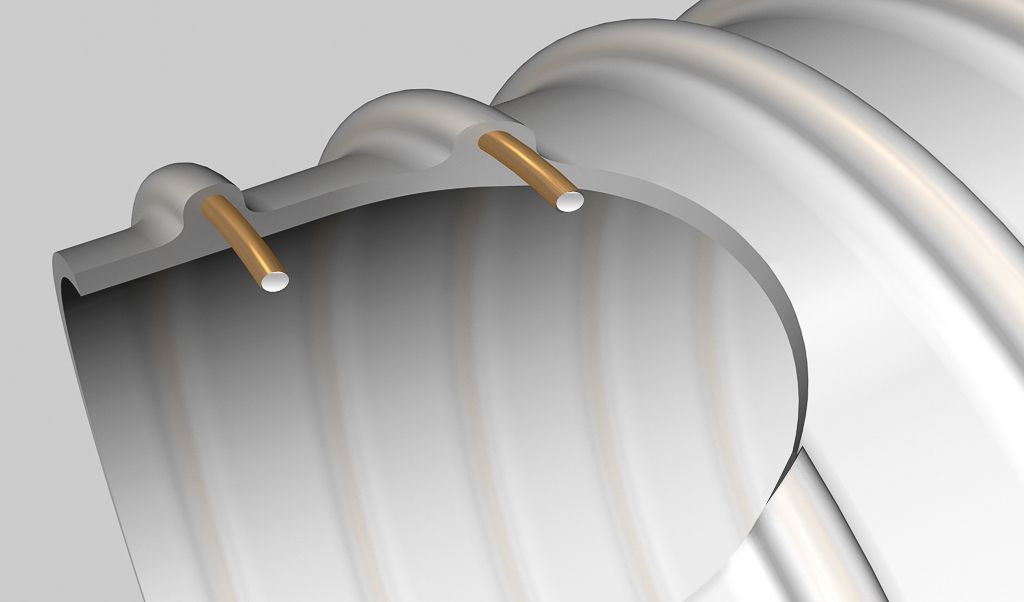

Design
- AIRDUC® profile hose
- 1. spring steel wire firmly embedded in wall
- 2. wall: special premium polyurethane (Pre-PUR®)
- 3. wall thickness 0.10 in approx.
- 4. reinforcement of the primary abrasion areas
Delivery variants
- further diameters and lengths available on request
- orange (standard)
- special colors: transparent, full colored
- customer-specific branding
Article variants
I.D.
(in / mm)
(in / mm)
outer Ø
(in)
(in)
Pressure
(psi)
(psi)
Vacuum
(inHG)
(inHG)
Bending
radius
(in)
radius
(in)
Weight
(lb/ft)
(lb/ft)
Dimensions
in Stock
(ft)
in Stock
(ft)
Production
lengths
(ft)
lengths
(ft)
Order No.
Further Article Details
I.D. (in / mm)
8 / 200-203
outer Ø (in)
8.386
Pressure (psi)
8.702
Vacuum (inHG)
3.544
Bending radius (in)
12.441
Weight (lb/ft)
3.448
Dimensions in Stock (ft)
12 25
Production lengths (ft)
-
Positive and negative pressure ratings are the recommended maximum operating values. Products can be manufactured to meet higher operating values upon request. The bend radius is calculated from the center of the hose in an arched position. Additional information at www.norres.com/us/technology/. NORRES reserves the right to modify technical data at any time. Technical data based on tests at 68°F and are approx. values. Proper use and maintenance of NORRES hoses is the sole responsibility of purchaser and ultimate user of the product. The individual conditions, applications and the number of variables make firm recommendations technically impossible. This information is intended as a general guide only.
