PROTAPE® PUR 327 PP

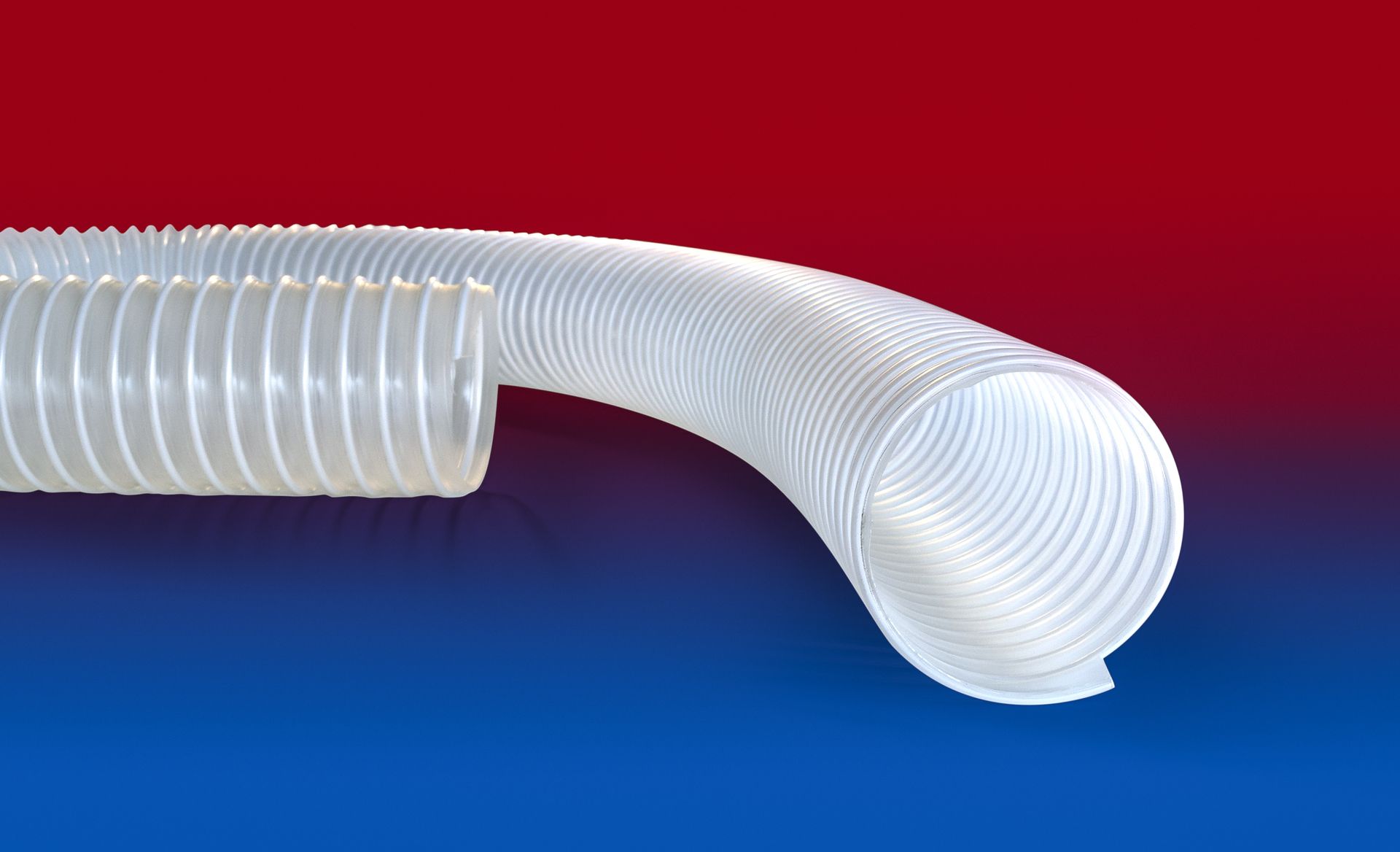

PROTAPE_PUR_327_PP_main.jpg design
Crush resistant hose
Gas + Dust + Liquid Pre-PUR® Abrasion-resistant Crush-resistant High flexibility Microbe-resistant
Request
Datasheet
Product details Article variants Documents Accessories

Product details

Applications

  • municipal vehicle: sweeper, sweeping machine
  • municipal vehicle: lawn mower, slope mower, leaf blower/ leaf collector
  • magnetic resonance scanner, MRI / computer tomography scanner, CT: air supply hose

Properties

  • super-light weight
  • highly flexible
  • highly abrasion resistant
  • crush resistant
  • microbe resistant
  • very good low temperature flexibility
  • Grounding wire for discharging of electrostatic charging
  • Permanently antistatic wall: in accordance with ISO 8031 electrical and surface resistance approx. 10⁹ Ω
  • conforms to RoHS guideline
  • REACH according to --> Technology / Technical Information / REACH

Temperature Range

  • -40°C to 90°C

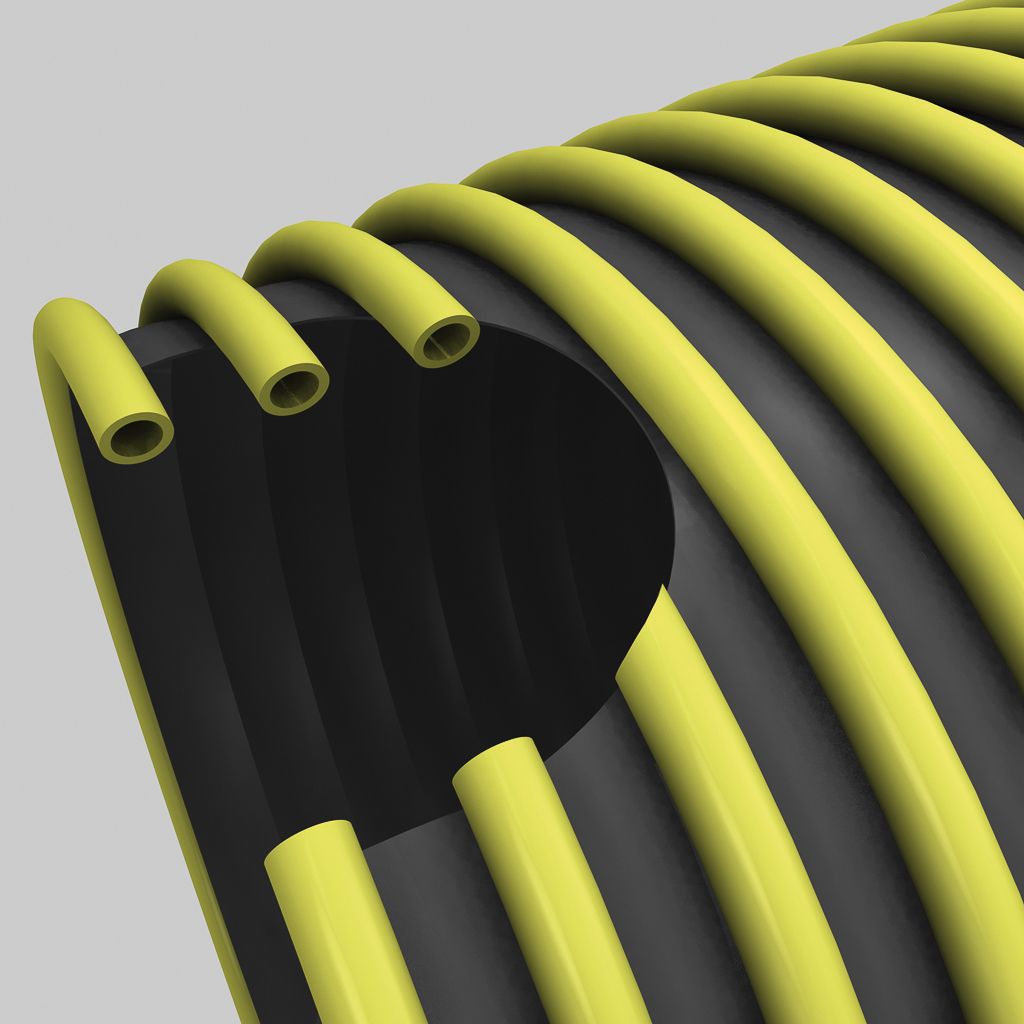

Design

  • PROTAPE® tape hose
  • 1. special plastic-profile supporting spiral
  • 2. wall: special premium ester-polyurethane (Pre-PUR®)
  • 3. wall thickness 0,4 mm approx.
  • 4. grounding wire

Delivery variants

  • customer-specific branding
  • further diameters and lengths available on request
  • transparent (standard)

Article variants

I.D.


(in / mm)
outer Ø


(mm)
Pressure


(bar)
Vacuum


(bar)
Bending
Radius

(mm)
Weight


(kg/m)
Production
Lengths

(m)
Order No.
2 / 50-51
62.00
0,603
0,014
20.00
0.25
10
327-0050-2100
Further Article Details
I.D. (in / mm)
2 / 50-51
outer Ø (mm)
62.00
Pressure (bar)
0,603
Vacuum (bar)
0,014
Bending Radius (mm)
20.00
Weight (kg/m)
0.25
Production Lengths (m)
10
6 / 150-152
162.00
0,203
0,005
55.00
0.67
10
327-0150-2100
Further Article Details
I.D. (in / mm)
6 / 150-152
outer Ø (mm)
162.00
Pressure (bar)
0,203
Vacuum (bar)
0,005
Bending Radius (mm)
55.00
Weight (kg/m)
0.67
Production Lengths (m)
10
6,5 / 165
177.00
0,184
0,004
61.00
0.75
10
327-0165-2100
Further Article Details
I.D. (in / mm)
6,5 / 165
outer Ø (mm)
177.00
Pressure (bar)
0,184
Vacuum (bar)
0,004
Bending Radius (mm)
61.00
Weight (kg/m)
0.75
Production Lengths (m)
10
Overpressure and underpressure are recommended threshold operating values, products can be subjected to higher loads upon request. The bending radius is measured through the inside of the hose arch. The right to make technical modifications is reserved. All values determined at 20°C and are approx. data. Additional information at www.norres.com/en/technology/.
