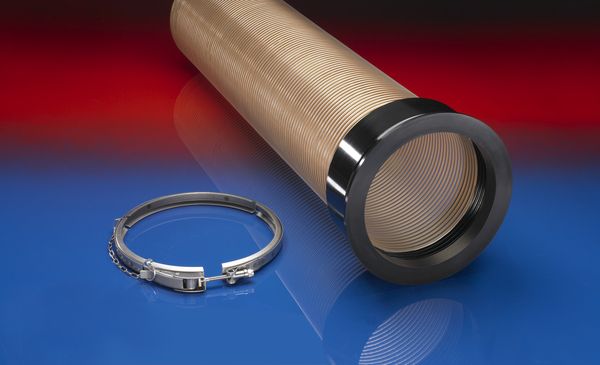

CONNECT 245 VAC-TRUCK

Tapered flange coupling system to fit adapter acc. to DIN 3016-3
Pre-PUR® Abrasion-resistant Microbe-resistant 48 hour assembly service
Request
Datasheet
Product details Article variants

Product details

Applications

  • suction excavator
  • municipal vehicle: sweeper, sweeping machine

Properties

  • easily and quickly fitted
  • re-usable (threaded version)
  • highly abrasion resistant
  • microbe and hydrolysis resistant
  • good resistance to oil, gasoline and chemicals
  • conforms to RoHS guideline
  • When used vertically user must secure flange and hose with additional attachments
  • REACH according to --> Technology / Technical Information / REACH

Temperature Range

  • -40°C to 90°C

Design

  • wall: special premium ether-polyurethane (Pre-PUR®)

Delivery variants

  • further diameters available on request
  • black (standard)
  • special colours: full coloured
  • gas and liquid tight as pre-fitted version

Suitable for hose

  • AIRDUC®: 355 + 356 (AS / FOOD); 355 VAC-TRUCK ORANGE; 356 HT

Article variants

Size


(mm)
Outer-Ø
flange

(mm)
Total
Length

(mm)
Weight


(kg/pcs)
Suitable for
Hose I.D.

(mm)
item
Order No.
standard version, 80 Shore D approx.
250
295
108
1,00
356-0250-0000
tapered flange, black, for screwing on
245-0250-8501
Further Article Details
Size (mm)
250
Outer-Ø flange (mm)
295
Total Length (mm)
108
Weight (kg/pcs)
1,00
Suitable for Hose I.D. (mm)
356-0250-0000
item
tapered flange, black, for screwing on
250
295
108
1,00
355-0254-5202
tapered flange, black, for screwing on
245-0250-8507
Further Article Details
Size (mm)
250
Outer-Ø flange (mm)
295
Total Length (mm)
108
Weight (kg/pcs)
1,00
Suitable for Hose I.D. (mm)
355-0254-5202
item
tapered flange, black, for screwing on
Soft version, 85 Shore A approx.
250
295
108
1,00
356-0250-0000
tapered flange, black, for screwing on
245-0250-8505
Further Article Details
Size (mm)
250
Outer-Ø flange (mm)
295
Total Length (mm)
108
Weight (kg/pcs)
1,00
Suitable for Hose I.D. (mm)
356-0250-0000
item
tapered flange, black, for screwing on
pre-fitted, 85 Shore D approx.
250
295
119
1,61
356-0250-0000
tapered flange, black, moulded
245-0250-8573
Further Article Details
Size (mm)
250
Outer-Ø flange (mm)
295
Total Length (mm)
119
Weight (kg/pcs)
1,61
Suitable for Hose I.D. (mm)
356-0250-0000
item
tapered flange, black, moulded
250
295
108
1,00
355-0254-5202; 356-0250-0000
reinforced tapered flange, black, moulded
245-0250-8754
Further Article Details
Size (mm)
250
Outer-Ø flange (mm)
295
Total Length (mm)
108
Weight (kg/pcs)
1,00
Suitable for Hose I.D. (mm)
355-0254-5202; 356-0250-0000
item
reinforced tapered flange, black, moulded
Reinforced version, 85 Shore D approx.
250
295
108
1,00
356-0250-0000
Reinforced tapered flange, black, for screwing on
245-0250-8701
Further Article Details
Size (mm)
250
Outer-Ø flange (mm)
295
Total Length (mm)
108
Weight (kg/pcs)
1,00
Suitable for Hose I.D. (mm)
356-0250-0000
item
Reinforced tapered flange, black, for screwing on
Clamps
250
-
-
1,50
-
Reinforced quick-release clamp
245-0250-8755
Further Article Details
Size (mm)
250
Outer-Ø flange (mm)
-
Total Length (mm)
-
Weight (kg/pcs)
1,50
Suitable for Hose I.D. (mm)
-
item
Reinforced quick-release clamp
250
-
-
1,240
-
Quick-Release clamp
245-0250-8911
Further Article Details
Size (mm)
250
Outer-Ø flange (mm)
-
Total Length (mm)
-
Weight (kg/pcs)
1,240
Suitable for Hose I.D. (mm)
-
item
Quick-Release clamp
Overpressure and underpressure are recommended threshold operating values, products can be subjected to higher loads upon request. The bending radius is measured through the inside of the hose arch. The right to make technical modifications is reserved. All values determined at 20°C and are approx. data. Additional information at www.norres.com/en/technology/.
