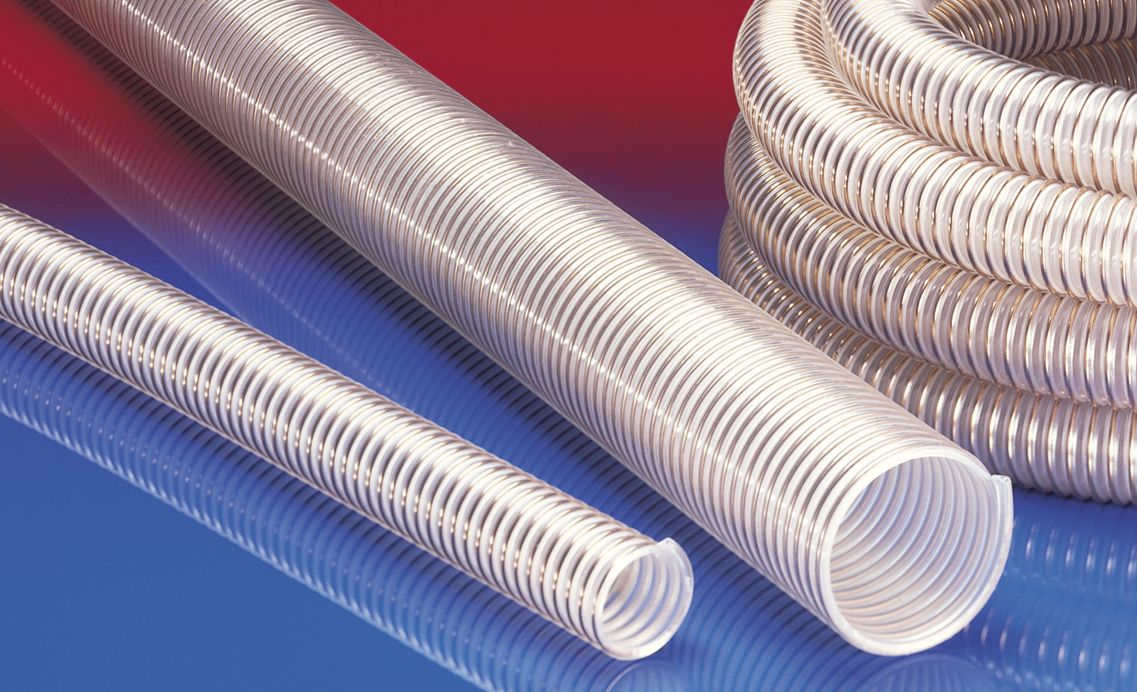

AIRDUC® PUR 356 FOOD REINFORCED (XXHD)
Food hose and pharmaceutical hose, extremely heavy
Product details
Applications
- hose/ ducting for high throughput of extremely abrasive bulk material, granulate and stone
- food industry, pharmaceutical industry: foodstuff, pharmaceutical
- conveying of dry foods e.g. rice, cereals, sugar, milk powder, powders, coffee, tea, grains, flour, frozen foods
- animal stall, animal shed: feedstuff conveying, feedstuff plant, animal feed transport
- raw material conveying hose for powders, granulates, sand, quartz, gravel, shards and chips/ shavings
- silos and tankers: silo charging, silo discharging
- silo and tankers: conveying of wood pellets, plastic granulate, plastic powder
- silos and tankers: conveying of e.g. rice, dry food, cereals, sugar, milk powder, powders, coffee, tea, grains, flour, frozen foods
Properties
- extremely heavy duty
- extremely abrasion-resistant with reinforcement underneath wire and narrow hose pitch
- very high pressure, vacuum and compression resistance
- Approved by an independent testing laboratory for the complete hose acc. to EU-Directive 10/2011, EC 1935/2004 and EU 2015/174, food grade polyurethane, complies with: FDA 21 CFR 177.2600
- Approval acc. to EU-Directive 10/2011 (food simulants A, B, C or E and D2) and EC 1935/2004
- odourless and tasteless
- microbe and hydrolysis resistant
- very good low temperature flexibility
- manufacturing process acc. GMP EC 2023/2006
- conforms to RoHS guideline
- REACH according to --> Technology / Technical Information / REACH
Temperature Range
- -40°C to 90°C
- short time to 125°C
Design
- AIRDUC® profile hose
- 1. spring steel wire firmly embedded in wall
- 2. wall: special premium ether-polyurethane (Pre-PUR®)
- 3. wall thickness 3,0 to 3,5 mm approx.
- 4. reinforcement of the primary abrasion areas
Delivery variants
- further diameters and lengths available on request
- customer-specific branding
- transparent (standard)
Article variants
I.D.
(in / mm)
(in / mm)
outer Ø
(mm)
(mm)
Pressure
(bar)
(bar)
Vacuum
(bar)
(bar)
Bending
Radius
(mm)
Radius
(mm)
Weight
(kg/m)
(kg/m)
Dimensions
in Stock
(m)
in Stock
(m)
Production
Lengths
(m)
Lengths
(m)
Order No.
Further Article Details
I.D. (in / mm)
- / 50
outer Ø (mm)
67.00
Pressure (bar)
4,065
Vacuum (bar)
1,000
Bending Radius (mm)
189.00
Weight (kg/m)
1.49
Dimensions in Stock (m)
-
Production Lengths (m)
10
Further Article Details
I.D. (in / mm)
2,36 / 60
outer Ø (mm)
77.00
Pressure (bar)
3,455
Vacuum (bar)
1,000
Bending Radius (mm)
216.00
Weight (kg/m)
1.76
Dimensions in Stock (m)
-
Production Lengths (m)
10
Further Article Details
I.D. (in / mm)
- / 65
outer Ø (mm)
82.00
Pressure (bar)
3,210
Vacuum (bar)
1,000
Bending Radius (mm)
230.00
Weight (kg/m)
1.89
Dimensions in Stock (m)
-
Production Lengths (m)
10
Further Article Details
I.D. (in / mm)
- / 75
outer Ø (mm)
92.00
Pressure (bar)
2,815
Vacuum (bar)
1,000
Bending Radius (mm)
257.00
Weight (kg/m)
2.04
Dimensions in Stock (m)
-
Production Lengths (m)
10
Further Article Details
I.D. (in / mm)
3 / 76
outer Ø (mm)
87.00
Pressure (bar)
2,800
Vacuum (bar)
1,000
Bending Radius (mm)
259.00
Weight (kg/m)
2.08
Dimensions in Stock (m)
-
Production Lengths (m)
10
Further Article Details
I.D. (in / mm)
- / 80
outer Ø (mm)
97.00
Pressure (bar)
2,655
Vacuum (bar)
1,000
Bending Radius (mm)
270.00
Weight (kg/m)
2.30
Dimensions in Stock (m)
-
Production Lengths (m)
10
Further Article Details
I.D. (in / mm)
- / 90
outer Ø (mm)
107.00
Pressure (bar)
2,380
Vacuum (bar)
1,000
Bending Radius (mm)
297.00
Weight (kg/m)
2.90
Dimensions in Stock (m)
-
Production Lengths (m)
10
Further Article Details
I.D. (in / mm)
- / 100
outer Ø (mm)
117.00
Pressure (bar)
2,155
Vacuum (bar)
1,000
Bending Radius (mm)
324.00
Weight (kg/m)
3.20
Dimensions in Stock (m)
10
Production Lengths (m)
-
Further Article Details
I.D. (in / mm)
4 / 102
outer Ø (mm)
119.00
Pressure (bar)
2,005
Vacuum (bar)
1,000
Bending Radius (mm)
330.00
Weight (kg/m)
3.26
Dimensions in Stock (m)
10
Production Lengths (m)
-
Further Article Details
I.D. (in / mm)
4,5 / 114-115
outer Ø (mm)
132.00
Pressure (bar)
1,890
Vacuum (bar)
0,920
Bending Radius (mm)
365.00
Weight (kg/m)
3.64
Dimensions in Stock (m)
-
Production Lengths (m)
10
Further Article Details
I.D. (in / mm)
- / 125
outer Ø (mm)
142.00
Pressure (bar)
1,745
Vacuum (bar)
0,845
Bending Radius (mm)
392.00
Weight (kg/m)
3.95
Dimensions in Stock (m)
10
Production Lengths (m)
-
Further Article Details
I.D. (in / mm)
5 / 127
outer Ø (mm)
144.00
Pressure (bar)
1,715
Vacuum (bar)
0,840
Bending Radius (mm)
398.00
Weight (kg/m)
4.01
Dimensions in Stock (m)
-
Production Lengths (m)
10
Further Article Details
I.D. (in / mm)
- / 150
outer Ø (mm)
167.00
Pressure (bar)
1,465
Vacuum (bar)
0,760
Bending Radius (mm)
460.00
Weight (kg/m)
5.05
Dimensions in Stock (m)
-
Production Lengths (m)
10
Overpressure and underpressure are recommended threshold operating values, products can be subjected to higher loads upon request. The bending radius is measured through the inside of the hose arch. The right to make technical modifications is reserved. All values determined at 20°C and are approx. data. Additional information at www.norres.com/en/technology/.
