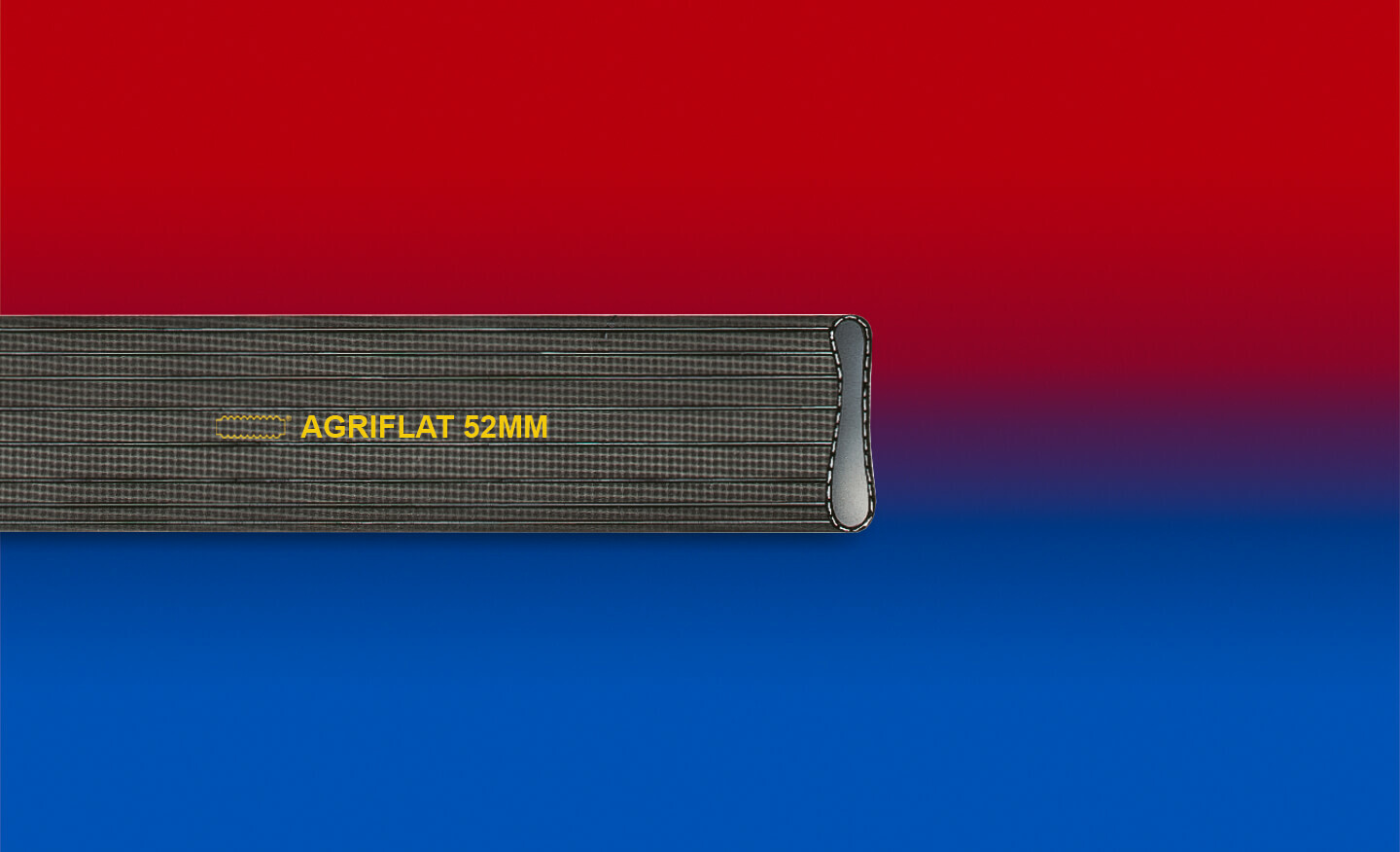

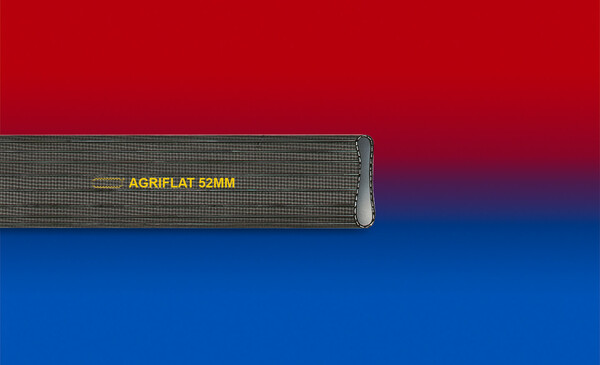

3070 AGRIFLAT

Layflat water hose
Gas + Liquid Pressure resistant
Request
Datasheet
Product details Article variants

Product details

Applications

  • for various agricultural applications (dung transport and irrigation / sprinkling)
  • for discharge and supply of industrial water (including hot water), pumps, sewer cleaning, cable protection and various other heavy industrial applications
  • Suitable for air and dung
  • for firefighting
  • Cable protection

Properties

  • limited lye and acid resistance
  • high tensile strength due to heavy duty reinforcements
  • inner tube resistant to petrol and oil
  • construction cover resistant to ageing, ozone, UV and weathering
  • According to the norm EN ISO 1307:2008

Temperature Range

  • -20°C to 80°C
  • short time to 100°C
  • Max. temperature hot water: 80°C

Design

  • NBR/PVC inner layer
  • NBR/PVC outer layer
  • Außendecke gerieft

Delivery variants

  • black inner tube, black exterior wall

Article variants

I.D.


(in / mm)
outer Ø


(mm)
Wall
Thickness

(mm)
Hose
flat measured
(mm)
Operating pressure
(20°C)

(bar)
Max. operating
pressure air

(bar)
Burst pressure
(20°C)

(bar)
Weight


(kg/m)
Dimensions
in Stock

(m)
Order No.
0,75 / 20
24.00
2.00
30,00
25,000
18,000
75,000
0.18
20 100
3070-019-000
Further Article Details
I.D. (in / mm)
0,75 / 20
outer Ø (mm)
24.00
Wall Thickness (mm)
2.00
Hose flat measured (mm)
30,00
Operating pressure (20°C) (bar)
25,000
Max. operating pressure air (bar)
18,000
Burst pressure (20°C) (bar)
75,000
Weight (kg/m)
0.18
Dimensions in Stock (m)
20 100
1 / 26
30.40
2.20
39,00
25,000
18,000
75,000
0.21
20 100
3070-025-000
Further Article Details
I.D. (in / mm)
1 / 26
outer Ø (mm)
30.40
Wall Thickness (mm)
2.20
Hose flat measured (mm)
39,00
Operating pressure (20°C) (bar)
25,000
Max. operating pressure air (bar)
18,000
Burst pressure (20°C) (bar)
75,000
Weight (kg/m)
0.21
Dimensions in Stock (m)
20 100
1,25 / 32
36.40
2.20
50,00
20,000
15,000
60,000
0.24
100
3070-032-000
Further Article Details
I.D. (in / mm)
1,25 / 32
outer Ø (mm)
36.40
Wall Thickness (mm)
2.20
Hose flat measured (mm)
50,00
Operating pressure (20°C) (bar)
20,000
Max. operating pressure air (bar)
15,000
Burst pressure (20°C) (bar)
60,000
Weight (kg/m)
0.24
Dimensions in Stock (m)
100
1,5 / 38
42.60
2.30
60,00
16,000
12,000
50,000
0.30
20 100
3070-038-000
Further Article Details
I.D. (in / mm)
1,5 / 38
outer Ø (mm)
42.60
Wall Thickness (mm)
2.30
Hose flat measured (mm)
60,00
Operating pressure (20°C) (bar)
16,000
Max. operating pressure air (bar)
12,000
Burst pressure (20°C) (bar)
50,000
Weight (kg/m)
0.30
Dimensions in Stock (m)
20 100
2 / 52
57.00
2.50
82,00
16,000
12,000
50,000
0.40
20 100
3070-050-000
Further Article Details
I.D. (in / mm)
2 / 52
outer Ø (mm)
57.00
Wall Thickness (mm)
2.50
Hose flat measured (mm)
82,00
Operating pressure (20°C) (bar)
16,000
Max. operating pressure air (bar)
12,000
Burst pressure (20°C) (bar)
50,000
Weight (kg/m)
0.40
Dimensions in Stock (m)
20 100
3 / 76
81.80
2.90
118,00
16,000
12,000
50,000
0.65
20 100
3070-075-000
Further Article Details
I.D. (in / mm)
3 / 76
outer Ø (mm)
81.80
Wall Thickness (mm)
2.90
Hose flat measured (mm)
118,00
Operating pressure (20°C) (bar)
16,000
Max. operating pressure air (bar)
12,000
Burst pressure (20°C) (bar)
50,000
Weight (kg/m)
0.65
Dimensions in Stock (m)
20 100
3,5 / 90
96.60
3.30
141,00
16,000
12,000
50,000
0.90
100
3070-090-000
Further Article Details
I.D. (in / mm)
3,5 / 90
outer Ø (mm)
96.60
Wall Thickness (mm)
3.30
Hose flat measured (mm)
141,00
Operating pressure (20°C) (bar)
16,000
Max. operating pressure air (bar)
12,000
Burst pressure (20°C) (bar)
50,000
Weight (kg/m)
0.90
Dimensions in Stock (m)
100
4 / 102
108.60
3.30
160,00
16,000
12,000
50,000
1.00
20 100
3070-100-000
Further Article Details
I.D. (in / mm)
4 / 102
outer Ø (mm)
108.60
Wall Thickness (mm)
3.30
Hose flat measured (mm)
160,00
Operating pressure (20°C) (bar)
16,000
Max. operating pressure air (bar)
12,000
Burst pressure (20°C) (bar)
50,000
Weight (kg/m)
1.00
Dimensions in Stock (m)
20 100
5 / 127
134.00
3.50
196,00
14,000
10,000
42,000
1.40
20 100
3070-125-000
Further Article Details
I.D. (in / mm)
5 / 127
outer Ø (mm)
134.00
Wall Thickness (mm)
3.50
Hose flat measured (mm)
196,00
Operating pressure (20°C) (bar)
14,000
Max. operating pressure air (bar)
10,000
Burst pressure (20°C) (bar)
42,000
Weight (kg/m)
1.40
Dimensions in Stock (m)
20 100
6 / 152
159.40
3.70
239,00
14,000
10,000
42,000
1.80
20 50
3070-150-000
Further Article Details
I.D. (in / mm)
6 / 152
outer Ø (mm)
159.40
Wall Thickness (mm)
3.70
Hose flat measured (mm)
239,00
Operating pressure (20°C) (bar)
14,000
Max. operating pressure air (bar)
10,000
Burst pressure (20°C) (bar)
42,000
Weight (kg/m)
1.80
Dimensions in Stock (m)
20 50
8 / 203
210.80
3.90
319,00
10,000
7,000
30,000
2.60
50
3070-200-000
Further Article Details
I.D. (in / mm)
8 / 203
outer Ø (mm)
210.80
Wall Thickness (mm)
3.90
Hose flat measured (mm)
319,00
Operating pressure (20°C) (bar)
10,000
Max. operating pressure air (bar)
7,000
Burst pressure (20°C) (bar)
30,000
Weight (kg/m)
2.60
Dimensions in Stock (m)
50
Overpressure and underpressure are recommended threshold operating values, products can be subjected to higher loads upon request. The bending radius is measured through the inside of the hose arch. The right to make technical modifications is reserved. All values determined at 20°C and are approx. data. Additional information at www.norres.com/en/technology/.
